Gray3D::cOctreeNodeCont Class Reference

#include <cOctree.h>

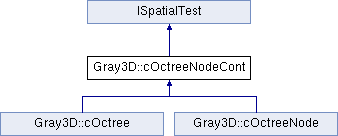

Inheritance diagram for Gray3D::cOctreeNodeCont:
ISpatialTest Gray3D::cOctree Gray3D::cOctreeNode

Public Types

typedef int CHILDIDX_t
 0 to 7 k_NodeMax More...


Public Member Functions

 cOctreeNodeCont () noexcept

virtual ~cOctreeNodeCont ()

void FreeChildNode (CHILDIDX_t ci)

void FreeChildNodes ()

 UNITTEST_FRIEND (cOctree)
 run an heavy usage simulation to test More...


Static Public Attributes

static const CHILDIDX_t k_NodeMax = 8
 2x2x2 = 8 More...


Protected Member Functions

bool TraverseIntersectHex (ISpatialTestVisitor *pResults, const cHexahedron &frustum, cHexahedron::PLANES_MASK_t planes)

virtual bool TraverseIntersectSphere (ISpatialTestVisitor *pResults, const cSpheref &sphere) const override

virtual bool TraverseIntersectBounds (ISpatialTestVisitor *pResults, const cBounds3f &bbox) const override

virtual bool TraverseIntersectHex (ISpatialTestVisitor *pResults, const cHexahedron &frustum) override

virtual bool TraverseIntersectSegment (ISpatialTestVisitor *pResults, const cSegment3f &segment) override

virtual bool TraverseAll (ISpatialTestVisitor *pResults) const override


Protected Attributes

cOctreeNode * m_aChildNodes [k_NodeMax]
 container for sparse 2x2x2 possible subdivided children. for each sign octant More...

CHILDIDX_t m_nChildNodes
 Number of actually populated m_aChildNodes. <= 8. More...

int m_iSpatialTestVal
 validation value. incremented periodically (per frame?) More...


Detailed Description

a container for 2x2x2 child nodes. k_NodeMax

Member Typedef Documentation

◆ CHILDIDX_t

typedef int Gray3D::cOctreeNodeCont::CHILDIDX_t

0 to 7 k_NodeMax

Constructor & Destructor Documentation

◆ cOctreeNodeCont()

Gray3D::cOctreeNodeCont::cOctreeNodeCont ( )
inlinenoexcept

◆ ~cOctreeNodeCont()

virtual Gray3D::cOctreeNodeCont::~cOctreeNodeCont ( )
inlinevirtual

Member Function Documentation

◆ FreeChildNode()

void Gray3D::cOctreeNodeCont::FreeChildNode ( CHILDIDX_t  ci)

◆ FreeChildNodes()

void Gray3D::cOctreeNodeCont::FreeChildNodes ( )

Free all the child nodes.

◆ TraverseAll()

bool Gray3D::cOctreeNodeCont::TraverseAll ( ISpatialTestVisitor *  pResults) const
overrideprotectedvirtual

ISpatialTest No testing. just traverse all objects.

Reimplemented in Gray3D::cOctreeNode.

◆ TraverseIntersectBounds()

bool Gray3D::cOctreeNodeCont::TraverseIntersectBounds ( ISpatialTestVisitor *  pResults,
const cBounds3f &  bbox
) const
overrideprotectedvirtual

ISpatialTest BBox intersect.

Reimplemented in Gray3D::cOctreeNode.

◆ TraverseIntersectHex() [1/2]

bool Gray3D::cOctreeNodeCont::TraverseIntersectHex ( ISpatialTestVisitor *  pResults,
const cHexahedron &  frustum
)
overrideprotectedvirtual

ISpatialTest Frustum intersect.

◆ TraverseIntersectHex() [2/2]

bool Gray3D::cOctreeNodeCont::TraverseIntersectHex ( ISpatialTestVisitor *  pResults,
const cHexahedron &  frustum,
cHexahedron::PLANES_MASK_t  planes
)
protected

Frustum intersect.

◆ TraverseIntersectSegment()

bool Gray3D::cOctreeNodeCont::TraverseIntersectSegment ( ISpatialTestVisitor *  pResults,
const cSegment3f &  segment
)
overrideprotectedvirtual

ISpatialTest Ray pick nodes. pITraverse->ObjectIntersect() calls.

Returns
true = run to end. false = short circuit.

Reimplemented in Gray3D::cOctreeNode.

◆ TraverseIntersectSphere()

bool Gray3D::cOctreeNodeCont::TraverseIntersectSphere ( ISpatialTestVisitor *  pResults,
const cSpheref &  sphere
) const
overrideprotectedvirtual

ISpatialTest Sphere intersect.

Reimplemented in Gray3D::cOctreeNode.

◆ UNITTEST_FRIEND()

Gray3D::cOctreeNodeCont::UNITTEST_FRIEND ( cOctree  )

run an heavy usage simulation to test

Member Data Documentation

◆ k_NodeMax

const CHILDIDX_t Gray3D::cOctreeNodeCont::k_NodeMax = 8
static

2x2x2 = 8

◆ m_aChildNodes

cOctreeNode* Gray3D::cOctreeNodeCont::m_aChildNodes[k_NodeMax]
protected

container for sparse 2x2x2 possible subdivided children. for each sign octant

◆ m_iSpatialTestVal

int Gray3D::cOctreeNodeCont::m_iSpatialTestVal
mutableprotected

validation value. incremented periodically (per frame?)

◆ m_nChildNodes

CHILDIDX_t Gray3D::cOctreeNodeCont::m_nChildNodes
protected

Number of actually populated m_aChildNodes. <= 8.

The documentation for this class was generated from the following files:
