#include <cKeyRSA.h>

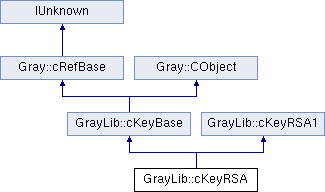

Inheritance diagram for GrayLib::cKeyRSA:

Public Member Functions
	cKeyRSA (PKCS1_VER_TYPE ePadding=PKCS1_VER_15, SSL_Hash_TYPE eHashType=SSL_Hash_NONE)

virtual	~cKeyRSA ()

bool	IsValidPrivateKey () const

virtual size_t	get_KeySize () const override
	Get key size in bytes. More...

virtual int	GetKeyValues (cValue *items) const override
	Interface with the debug module. get debug values. More...

virtual void	SetZeroKey () override
	Secure zero the key. More...

void	SetCopyKey (const cKeyRSA &src)

HRESULT	DoRSAPublic (BYTE pOutput, const BYTE pInput) const

HRESULT	DoRSAPrivate (BYTE pOutput, const BYTE pInput, IRandomNoise *pRandom) const

HRESULT	VerifySignatureV15 (SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, const BYTE pSig) const

HRESULT	VerifySignatureV21 (SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, const BYTE pSig, SSL_Hash_TYPE mgf1_hash_id, int expected_salt_len) const

virtual HRESULT	CheckPublicPrivatePair (const cKeyBase *pKeyPrivate) const override
	Check public-private key pair. More...

virtual HRESULT	VerifySignature (SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, const BYTE pSig, size_t nSizeSig) const override
	Verify Key signature. Make const ?? More...

virtual HRESULT	MakeSignature (BYTE pSig, SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, IRandomNoise *pRandom) const override
	Make signature From Key. Make const ?? More...

HRESULT	DecryptWithKey (BYTE pOutput, size_t nSizeOut, const BYTE pInput, size_t nSizeIn, IRandomNoise *pRandom)

HRESULT	EncryptWithKey (BYTE pOutput, size_t nSizeOut, const BYTE pInput, size_t nSizeIn, IRandomNoise *pRandom)

bool	UpdateReadPrivate ()

virtual HRESULT	ReadPublicKey (cASNReader &r, cASNBuf *pAlgParams) override

virtual HRESULT	WritePublicKey (cASNWriterRev &w) const override

HRESULT	ReadPrivateKeyPVK (const BYTE *pKeyData, int nSize)

virtual HRESULT	ReadPrivateKey (cASNReader &r, cASNBuf *pAlgParams) override
	Read not encrypted. (already decrypted) More...

virtual HRESULT	WritePrivateKey (cASNWriterRev &w) const override
	Write not encrypted. (may be encrypted/secured later) More...

HRESULT	GenerateKeys (BIT_ENUM_t nBits, UINT nExpoMax, IRandomNoise *pRandom)

	UNITTEST_FRIEND (cKeyRSA)

Public Member Functions inherited from GrayLib::cKeyBase
virtual	~cKeyBase ()

Public Member Functions inherited from Gray::cRefBase
	cRefBase (int iRefCount=0) noexcept

virtual	~cRefBase ()

int	get_RefCount () const noexcept

HASHCODE_t	get_HashCode () const noexcept

	STDMETHOD_ (HASHCODE_t, get_HashCodeX)() const noexcept

virtual void	onFinalRelease ()

bool	isValidObj () const noexcept

	STDMETHOD_ (ULONG, AddRef)(void) override

	STDMETHOD_ (ULONG, Release)(void) override

STDMETHOD()	QueryInterface (const IID &riid, void __RPC_FAR __RPC_FAR ppvObject) override

void	IncRefCount ()

void	DecRefCount ()

bool	isStaticConstruct () const noexcept

void	StaticConstruct ()

void	StaticDestruct ()

bool	isDestructing () noexcept

void	SetDestructing ()

Public Member Functions inherited from Gray::CObject
virtual	~CObject ()

virtual bool	isValidCheck () const noexcept
	< memory allocation and structure definitions are valid. More...

virtual void	AssertValid () const
	< memory allocation and structure definitions are valid. More...

virtual void	Serialize (cArchive &a)

Public Member Functions inherited from GrayLib::cKeyRSA1
	cKeyRSA1 (void)

	cKeyRSA1 (const VAL_t &_exp, const VAL_t &_mod)

virtual	~cKeyRSA1 (void)

bool	IsValidKey () const

void	SetZeroKey ()

void	SetCopyKey (const cKeyRSA1 &src)

void	GenerateKeys (OUT VAL_t &d, const VAL_t &p, const VAL_t &q)

void	GenerateKeys (BIT_ENUM_t nBits, OUT VAL_t &d, OUT VAL_t pP=nullptr, OUT VAL_t pQ=nullptr)

VAL_t	EncryptDecrypt (const VAL_t &source) const

HRESULT	WritePublicKey (cASNWriterRev &w) const

HRESULT	ReadPublicKey (cASNReader &r)

HRESULT	LoadKeyFile (cStreamInput &rInp, const char *pszName=nullptr)

HRESULT	LoadKeyFile (const FILECHAR_t pszFileName, const char pszName=nullptr)

	UNITTEST_FRIEND (cKeyRSA1)

Public Attributes
size_t	m_nSizeBlock
	sizeof(N) in bytes. Block size for DecryptWithKey More...

PKCS1_VER_TYPE	m_ePadding
	PKCS1_VER_15 for 1.5 padding and PKCS1_VER_21 for OAEP/PSS. More...

SSL_Hash_TYPE	m_eHashType
	Hash identifier for the EME-OAEP and EMSA-PSS encoding. MGF1. More...

VAL_t	m_D
	private exponent More...

VAL_t	m_P
	1st prime factor (private) (r) More...

VAL_t	m_Q
	2nd prime factor (private) More...

VAL_t	m_DP
	D % (P - 1) const derived value. More...

VAL_t	m_DQ
	D % (Q - 1) const derived value. More...

VAL_t	m_QP
	1 / (Q % P) const derived value. More...

cThreadLockMutex	m_Mutex
	Thread-safety mutex for mutable cached stuff. More...

VAL_t	m_RN
	cached R^2 mod N (for public) More...

VAL_t	m_RP
	cached R^2 mod P for DoRSAPrivate More...

VAL_t	m_RQ
	cached R^2 mod Q for DoRSAPrivate More...

VAL_t	m_BlindAdd
	cached blinding value for DoRSAPrivate More...

VAL_t	m_BlindRemove
	cached un-blinding value for DoRSAPrivate More...

Public Attributes inherited from GrayLib::cKeyRSA1
VAL_t	m_N
	modulus of the key (usually public) = multiplication of the 2 primes (pq). More...

VAL_t	m_E
	exponent of the key (public or private half of the key depending on use.) More...

Static Public Attributes
static const int	k_nSizeSaltAny = -1

Static Public Attributes inherited from GrayLib::cKeyBase
static const int	k_MAX_VALUES = 2
	Maximum number of cValue sent for debugging. More...

Protected Member Functions
HRESULT	CreateBlindingValues (IRandomNoise *pRandom) const

HRESULT	EncryptWithKeyV15 (BYTE pOutput, const BYTE pInput, size_t nSizeIn, IRandomNoise *pRandom)

HRESULT	EncryptWithKeyV21 (BYTE pOutput, const BYTE pInput, size_t nSizeIn, IRandomNoise pRandom, const BYTE pLabel=nullptr, size_t nSizeLabel=0)

HRESULT	DecryptWithKeyV15 (BYTE pOutput, size_t output_max_len, const BYTE pInput, IRandomNoise *pRandom)

HRESULT	DecryptWithKeyV21 (BYTE pOutput, size_t output_max_len, const BYTE pInput, IRandomNoise pRandom, const BYTE pLabel=nullptr, size_t nSizeLabel=0)

HRESULT	MakeSignatureV15 (BYTE pSig, SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, IRandomNoise *pRandom) const

HRESULT	MakeSignatureV21 (BYTE pSig, SSL_Hash_TYPE eHashType, const BYTE pHash, size_t nSizeHash, IRandomNoise *pRandom) const

Additional Inherited Members
Public Types inherited from GrayLib::cKeyBase
enum	VALTYPE_TYPE { VALTYPE_NONE = 0 , VALTYPE_RSA = 1 , VALTYPE_ECP = 2 }

Public Types inherited from GrayLib::cKeyRSA1
typedef cBigUnsigned	VAL_t

Detailed Description

RSA public/private key structure. SSL_Key_RSA

Constructor & Destructor Documentation

◆ cKeyRSA()

GrayLib::cKeyRSA::cKeyRSA	(	PKCS1_VER_TYPE	ePadding = `PKCS1_VER_15`,
		SSL_Hash_TYPE	eHashType = `SSL_Hash_NONE`
	)

Initialize an RSA context

Note

Set PKCS1_VER_21 padding for the RSAES-OAEP encryption scheme and the RSASSA-PSS signature scheme.

ePadding = PKCS1_VER_15 or PKCS1_VER_21
eHashType = PKCS1_VER_21 hash identifier (ignored when using PKCS1_VER_15 padding).

Choice of padding mode is strictly enforced for private key operations, since there might be security concerns in mixing padding modes. For public key operations it's merely a default value, which can be overridden by calling specific rsa_rsaes_xxx or rsa_rsassa_xxx functions.

The chosen hash is always used for OEAP encryption. For PSS signatures, it's always used for making signatures, but can be overridden (and always is, if set to SSL_Hash_NONE) for verifying them.

◆ ~cKeyRSA()

GrayLib::cKeyRSA::~cKeyRSA ( )

virtual

Member Function Documentation

◆ CheckPublicPrivatePair()

HRESULT GrayLib::cKeyRSA::CheckPublicPrivatePair ( const cKeyBase * pKeyPrivate ) const

overridevirtual

Check public-private key pair.

Check if contexts holding a public and private key match Check a public-private RSA key pair. Check each of the keys, and make sure they match. this is RSA context holding the public key

pKeyPrivate = RSA context holding the private key
Returns
0 = successful, or < 0 error code

Implements GrayLib::cKeyBase.

◆ CreateBlindingValues()

HRESULT GrayLib::cKeyRSA::CreateBlindingValues ( IRandomNoise * pRandom ) const

protected

Generate or update blinding values, see section 10 of: KOCHER, Paul C. Timing attacks on implementations of Diffie-Hellman, RSA, DSS, and other systems. In : Advances in Cryptology—CRYPTO’96. Springer Berlin Heidelberg, 1996. p. 104-113.

◆ DecryptWithKey()

HRESULT GrayLib::cKeyRSA::DecryptWithKey	(	BYTE *	pOutput,
		size_t	nSizeOut,
		const BYTE *	pInput,
		size_t	nSizeIn,
		IRandomNoise *	pRandom
	)

Generic wrapper to perform a PKCS#1 decryption using the mode from the context. Do an RSA operation, then remove the message padding

Note: The pOutput buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used) otherwise an error is thrown.

◆ DecryptWithKeyV15()

HRESULT GrayLib::cKeyRSA::DecryptWithKeyV15	(	BYTE *	pOutput,
		size_t	output_max_len,
		const BYTE *	pInput,
		IRandomNoise *	pRandom
	)

protected

Perform a PKCS#1 v1.5 decryption (RSAES-PKCS1-v1_5-DECRYPT) Use private key to decrypt.

pOutput = buffer that will hold the plaintext
output_max_len = maximum length of the pOutput buffer
pInput = buffer holding the encrypted data
pRandom = RNG function (Only needed for RSA_PRIVATE)
Returns
0 if successful, or <0 = error code

Note
The pOutput buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used) otherwise an error is thrown.

◆ DecryptWithKeyV21()

HRESULT GrayLib::cKeyRSA::DecryptWithKeyV21	(	BYTE *	pOutput,
		size_t	output_max_len,
		const BYTE *	pInput,
		IRandomNoise *	pRandom,
		const BYTE *	pLabel = `nullptr`,
		size_t	nSizeLabel = `0`
	)

protected

Perform a PKCS#1 v2.1 OAEP decryption (RSAES-OAEP-DECRYPT)

pOutput = buffer that will hold the plaintext
output_max_len = maximum length of the pOutput buffer
pInput = buffer holding the encrypted data
pLabel = buffer holding the custom label to use
nSizeLabel = contains the label length
pRandom = RNG function (Only needed for RSA_PRIVATE)
Returns
0 if successful, or <0 = error code

Note
The pOutput buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used) otherwise an error is thrown.

◆ DoRSAPrivate()

HRESULT GrayLib::cKeyRSA::DoRSAPrivate	(	BYTE *	pOutput,
		const BYTE *	pInput,
		IRandomNoise *	pRandom
	)		const

Do an RSA private key operation When using the Chinese Remainder Theorem, we use blinding values.

pOutput = pOutput buffer
pInput = input buffer
pRandom = RNG function (Needed for blinding)
Returns
0 if successful, or <0 = error code

Note
The pInput and pOutput buffers must be large enough (eg. 128 bytes if RSA-1024 is used).

◆ DoRSAPublic()

HRESULT GrayLib::cKeyRSA::DoRSAPublic	(	BYTE *	pOutput,
		const BYTE *	pInput
	)		const

Do an RSA public key operation

pInput = input buffer
pOutput = pOutput buffer
Returns
0 if successful, <0 = error code

Note
This function does NOT take care of message padding. Also, be sure to set pInput[0] = 0 or assure that input is smaller than N.

The pInput and pOutput buffers must be large enough (eg. 128 bytes if RSA-1024 is used).

◆ EncryptWithKey()

HRESULT GrayLib::cKeyRSA::EncryptWithKey	(	BYTE *	pOutput,
		size_t	nSizeOut,
		const BYTE *	pInput,
		size_t	nSizeIn,
		IRandomNoise *	pRandom
	)

Perform a PKCS#1 encryption

Note: The pOutput buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

◆ EncryptWithKeyV15()

HRESULT GrayLib::cKeyRSA::EncryptWithKeyV15	(	BYTE *	pOutput,
		const BYTE *	pInput,
		size_t	nSizeIn,
		IRandomNoise *	pRandom
	)

protected

Perform a PKCS#1 v1.5 encryption (RSAES-PKCS1-v1_5-ENCRYPT) Use public key to encrypt.

pOutput = buffer that will hold the ciphertext
pInput = buffer holding the data to be encrypted
nSizeIn = contains the plaintext length
pRandom = RNG function (Needed for padding and RSA_PRIVATE)
Returns
0 if successful, or <0 = error code

Note
The pOutput buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

◆ EncryptWithKeyV21()

HRESULT GrayLib::cKeyRSA::EncryptWithKeyV21	(	BYTE *	pOutput,
		const BYTE *	pInput,
		size_t	nSizeIn,
		IRandomNoise *	pRandom,
		const BYTE *	pLabel = `nullptr`,
		size_t	nSizeLabel = `0`
	)

protected

Perform a PKCS#1 v2.1 OAEP encryption (RSAES-OAEP-ENCRYPT) Use public key to encrypt.

pOutput = buffer that will hold the ciphertext
pInput = buffer holding the data to be encrypted
nSizeIn = contains the plaintext length
pLabel = buffer holding the custom label to use
nSizeLabel = contains the label length
pRandom = RNG function (Needed for padding and PKCS#1 v2.1 encoding and RSA_PRIVATE)
Returns
0 if successful, or <0 = error code

Note
The output buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

◆ GenerateKeys()

HRESULT GrayLib::cKeyRSA::GenerateKeys	(	BIT_ENUM_t	nBits,
		UINT	nExpoMax,
		IRandomNoise *	pRandom
	)

Generate an RSA key pair. TODO Merge with cKeyRSA1 and cThreadState

nBits = size of the public key in bits
nExpoMax = public exponent max (e.g., 65537)
pRandom = RNG function
Returns
0 if successful, or <0 = error code

◆ get_KeySize()

virtual size_t GrayLib::cKeyRSA::get_KeySize ( ) const

inlineoverridevirtual

Get key size in bytes.

Get size of E. (in bytes)

Implements GrayLib::cKeyBase.

◆ GetKeyValues()

virtual int GrayLib::cKeyRSA::GetKeyValues ( cValue * items ) const

inlineoverridevirtual

Interface with the debug module. get debug values.

Debug info.

Implements GrayLib::cKeyBase.

◆ IsValidPrivateKey()

bool GrayLib::cKeyRSA::IsValidPrivateKey ( ) const

Check a private RSA key

◆ MakeSignature()

HRESULT GrayLib::cKeyRSA::MakeSignature	(	BYTE *	pSig,
		SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	hash_len,
		IRandomNoise *	pRandom
	)		const

overridevirtual

Make signature From Key. Make const ??

Generic wrapper to perform a PKCS#1 signature using the mode from the context. Do a private RSA operation to sign a message digest

pSig = buffer that will hold the ciphertext
eHashType = a HashType_* (use SSL_Hash_NONE for signing raw data)
pHash = buffer holding the message digest
nSizeHash = message digest length (for SSL_Hash_NONE only)
pRandom = RNG parameter (Needed for PKCS#1 v2.1 encoding and for RSA_PRIVATE)
Returns
0 if the signing operation was successful, or <0 = error code

Note
The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

In case of PKCS#1 v2.1 encoding, see comments on MakeSignatureV21() for details on eHashType.

Implements GrayLib::cKeyBase.

◆ MakeSignatureV15()

HRESULT GrayLib::cKeyRSA::MakeSignatureV15	(	BYTE *	pSig,
		SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	nSizeHash,
		IRandomNoise *	pRandom
	)		const

protected

Perform a PKCS#1 v1.5 signature (RSASSA-PKCS1-v1_5-SIGN) PKCS1_VER_15 Do an RSA operation to sign the message digest Use private key to sign.

pSig = buffer that will hold the ciphertext
eHashType = a HashType_* (use SSL_Hash_NONE for signing raw data)
pHash = buffer holding the message digest
nSizeHash = message digest length (for SSL_Hash_NONE only)
pRandom = RNG function (Only needed for RSA_PRIVATE)
Returns
0 if the signing operation was successful, or <0 = error code

Note
The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

◆ MakeSignatureV21()

HRESULT GrayLib::cKeyRSA::MakeSignatureV21	(	BYTE *	pSig,
		SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	nSizeHash,
		IRandomNoise *	pRandom
	)		const

protected

Perform a PKCS#1 v2.1 PSS signature (RSASSA-PSS-SIGN) Use private key to sign.

pSig = buffer that will hold the ciphertext
eHashType = a HashType_* (use SSL_Hash_NONE for signing raw data)
pHash = buffer holding the message digest
nSizeHash = message digest length (for SSL_Hash_NONE only)
pRandom = RNG function (Needed for PKCS#1 v2.1 encoding and for RSA_PRIVATE)
Returns
0 if the signing operation was successful, or an <0 = error code

Note
The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

The eHashType in the RSA context is the one used for the encoding. eHashType in the function call is the type of hash that is encoded. According to RFC 3447 it is advised to keep both hashes the same.

◆ ReadPrivateKey()

HRESULT GrayLib::cKeyRSA::ReadPrivateKey	(	cASNReader &	r,
		cASNBuf *	pAlgParams
	)

overridevirtual

Read not encrypted. (already decrypted)

Parse a PKCS#1 encoded private RSA key from ASN/DER format. This function parses the RSAPrivateKey (PKCS#1)

RSAPrivateKey ::= SEQUENCE { version Version, modulus INTEGER, – n publicExponent INTEGER, – e privateExponent INTEGER, – d prime1 INTEGER, – r (p?) prime2 INTEGER, – q exponent1 INTEGER, – d mod (p-1) exponent2 INTEGER, – d mod (q-1) coefficient INTEGER, – (inverse of q) mod p otherPrimeInfos OtherPrimeInfos OPTIONAL }

Implements GrayLib::cKeyBase.

◆ ReadPrivateKeyPVK()

HRESULT GrayLib::cKeyRSA::ReadPrivateKeyPVK	(	const BYTE *	pKeyData,
		int	nSize
	)

Read Windows PVK format. not encrypted.

◆ ReadPublicKey()

virtual HRESULT GrayLib::cKeyRSA::ReadPublicKey	(	cASNReader &	r,
		cASNBuf *	pAlgParams
	)

inlineoverridevirtual

Implements GrayLib::cKeyBase.

◆ SetCopyKey()

void GrayLib::cKeyRSA::SetCopyKey ( const cKeyRSA & src )

Copy the components of an RSA key

◆ SetZeroKey()

void GrayLib::cKeyRSA::SetZeroKey ( )

overridevirtual

Secure zero the key.

Free/clear all components of an RSA key

Implements GrayLib::cKeyBase.

◆ UNITTEST_FRIEND()

GrayLib::cKeyRSA::UNITTEST_FRIEND ( cKeyRSA )

◆ UpdateReadPrivate()

bool GrayLib::cKeyRSA::UpdateReadPrivate ( )

◆ VerifySignature()

HRESULT GrayLib::cKeyRSA::VerifySignature	(	SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	nSizeHash,
		const BYTE *	pSig,
		size_t	nSizeSig
	)		const

overridevirtual

Verify Key signature. Make const ??

Do an RSA operation and check the message digest Use public key to verify pSig. Generic wrapper to perform a PKCS#1 verification using the mode from the context. Do a public RSA operation and check the message digest

Note: The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).; In case of PKCS#1 v2.1 encoding, see comments on VerifySignatureV21() about eHashType .

Implements GrayLib::cKeyBase.

◆ VerifySignatureV15()

HRESULT GrayLib::cKeyRSA::VerifySignatureV15	(	SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	nSizeHash,
		const BYTE *	pSig
	)		const

Perform a PKCS#1 v1.5 verification (RSASSA-PKCS1-v1_5-VERIFY) Use public key to verify pSig.

eHashType = a HashType_* (use SSL_Hash_NONE for signing raw data)
pHash = buffer holding the message digest
nSizeHash = message digest length (for SSL_Hash_NONE only)
pSig = buffer holding the ciphertext
Returns
0 if the verify operation was successful, or <0 = error code

Note
The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

◆ VerifySignatureV21()

HRESULT GrayLib::cKeyRSA::VerifySignatureV21	(	SSL_Hash_TYPE	eHashType,
		const BYTE *	pHash,
		size_t	nSizeHash,
		const BYTE *	pSig,
		SSL_Hash_TYPE	mgf1_hash_id,
		int	expected_salt_len
	)		const

Perform a PKCS#1 v2.1 PSS verification (RSASSA-PSS-VERIFY) Use public key to verify pSig. (This is the version with "full" options.) Perform a PKCS#1 v2.1 PSS verification (RSASSA-PSS-VERIFY) (This is the "simple" version.)

Note

The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).

The eHashType in the RSA context is the one used for the verification. eHashType in the function call is the type of hash that is verified. According to RFC 3447 it is advised to keep both hashes the same. If eHashType in the RSA context is unset, the eHashType from the function call is used. Simplified PKCS#1 v2.1 RSASSA-PSS-VERIFY function

eHashType = a HashType_* (use SSL_Hash_NONE for signing raw data)
pHash = buffer holding the message digest
nSizeHash = message digest length (for SSL_Hash_NONE only)
eHashTypeMGF1 = message digest used for mask generation
expected_salt_len = Length of the salt used in padding, use RSA_SALT_LEN_ANY to accept any salt length
pSig = buffer holding the ciphertext

Returns: 0 if the verify operation was successful, or <0 = error code

Note: The "pSig" buffer must be as large as the size of this->m_N (eg. 128 bytes if RSA-1024 is used).; The eHashType in the RSA context is ignored.

◆ WritePrivateKey()

HRESULT GrayLib::cKeyRSA::WritePrivateKey ( cASNWriterRev & w ) const

overridevirtual

Write not encrypted. (may be encrypted/secured later)

Write private key in ASN/DER format

Implements GrayLib::cKeyBase.

◆ WritePublicKey()

virtual HRESULT GrayLib::cKeyRSA::WritePublicKey ( cASNWriterRev & w ) const

inlineoverridevirtual

Implements GrayLib::cKeyBase.

Member Data Documentation

◆ k_nSizeSaltAny

const int GrayLib::cKeyRSA::k_nSizeSaltAny = -1

static

◆ m_BlindAdd

VAL_t GrayLib::cKeyRSA::m_BlindAdd

mutable

cached blinding value for DoRSAPrivate

◆ m_BlindRemove

VAL_t GrayLib::cKeyRSA::m_BlindRemove

mutable

cached un-blinding value for DoRSAPrivate

◆ m_D

VAL_t GrayLib::cKeyRSA::m_D

private exponent

◆ m_DP

VAL_t GrayLib::cKeyRSA::m_DP

D % (P - 1) const derived value.

◆ m_DQ

VAL_t GrayLib::cKeyRSA::m_DQ

D % (Q - 1) const derived value.

◆ m_eHashType

SSL_Hash_TYPE GrayLib::cKeyRSA::m_eHashType

Hash identifier for the EME-OAEP and EMSA-PSS encoding. MGF1.

◆ m_ePadding

PKCS1_VER_TYPE GrayLib::cKeyRSA::m_ePadding

PKCS1_VER_15 for 1.5 padding and PKCS1_VER_21 for OAEP/PSS.

◆ m_Mutex

cThreadLockMutex GrayLib::cKeyRSA::m_Mutex

mutable

Thread-safety mutex for mutable cached stuff.

◆ m_nSizeBlock

size_t GrayLib::cKeyRSA::m_nSizeBlock

sizeof(N) in bytes. Block size for DecryptWithKey

◆ m_P

VAL_t GrayLib::cKeyRSA::m_P

1st prime factor (private) (r)

◆ m_Q

VAL_t GrayLib::cKeyRSA::m_Q

2nd prime factor (private)

◆ m_QP

VAL_t GrayLib::cKeyRSA::m_QP

1 / (Q % P) const derived value.

◆ m_RN

VAL_t GrayLib::cKeyRSA::m_RN

mutable

cached R^2 mod N (for public)

◆ m_RP

VAL_t GrayLib::cKeyRSA::m_RP

mutable

cached R^2 mod P for DoRSAPrivate

◆ m_RQ

VAL_t GrayLib::cKeyRSA::m_RQ

mutable

cached R^2 mod Q for DoRSAPrivate

The documentation for this class was generated from the following files:

c:/Dennis/Source/Gray/GrayLib/include/Key/cKeyRSA.h
c:/Dennis/Source/Gray/GrayLib/src/Key/cKeyRSA.cpp

Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ cKeyRSA()

◆ ~cKeyRSA()

Member Function Documentation

◆ CheckPublicPrivatePair()

◆ CreateBlindingValues()

◆ DecryptWithKey()

◆ DecryptWithKeyV15()

◆ DecryptWithKeyV21()

◆ DoRSAPrivate()

◆ DoRSAPublic()

◆ EncryptWithKey()

◆ EncryptWithKeyV15()

◆ EncryptWithKeyV21()

◆ GenerateKeys()

◆ get_KeySize()

◆ GetKeyValues()

◆ IsValidPrivateKey()

◆ MakeSignature()

◆ MakeSignatureV15()

◆ MakeSignatureV21()

◆ ReadPrivateKey()

◆ ReadPrivateKeyPVK()

◆ ReadPublicKey()

◆ SetCopyKey()

◆ SetZeroKey()

◆ UNITTEST_FRIEND()

◆ UpdateReadPrivate()

◆ VerifySignature()

◆ VerifySignatureV15()

◆ VerifySignatureV21()

◆ WritePrivateKey()

◆ WritePublicKey()

Member Data Documentation

◆ k_nSizeSaltAny

◆ m_BlindAdd

◆ m_BlindRemove

◆ m_D

◆ m_DP

◆ m_DQ

◆ m_eHashType

◆ m_ePadding

◆ m_Mutex

◆ m_nSizeBlock

◆ m_P

◆ m_Q

◆ m_QP

◆ m_RN

◆ m_RP

◆ m_RQ
